The landscape of modern engineering and manufacturing is undergoing a profound digital transformation, yet the persistent reliance on 2D engineering drawings presents both a significant challenge and a substantial opportunity. While three-dimensional (3D) modeling and Building Information Modeling (BIM) have gained prominence, 2D drawings remain foundational for communicating precise design, manufacturing, and construction specifications across diverse industries.1 A critical market need exists for solutions that can effectively bridge the gap between these ubiquitous 2D assets and the demands of contemporary digital workflows.
This analysis reveals a burgeoning market for advanced software solutions designed to extract, manage, search, and generate process steps from 2D engineering drawings. The market is experiencing a strong shift towards leveraging Artificial Intelligence (AI) and Machine Learning (ML) for automated data extraction, integrating with sophisticated Product Data Management (PDM) and Product Lifecycle Management (PLM) systems for comprehensive management and intelligent search, and employing emerging AI-driven tools for automated process generation. Solutions that combine robust information extraction, intelligent search capabilities, and automated process step generation from 2D drawings are uniquely positioned to address critical bottlenecks in traditional engineering and manufacturing workflows. Such offerings promise to significantly reduce manual effort, minimize errors, accelerate time-to-market, and unlock the vast, often untapped, data within existing 2D drawing archives.
Despite the widespread adoption of 3D modeling and Building Information Modeling (BIM) technologies, 2D engineering drawings continue to serve as an indispensable standard for conveying design, manufacturing, and construction specifications across a multitude of industries. These drawings are critical for communicating precise dimensions, tolerances, materials, and surface finishes, providing a clear vision of the product to be manufactured.2 Many organizations, particularly those dealing with legacy equipment or established workflows, still rely on 2D documents as their primary data source for estimates, design, and on-site work.3 Their simplicity, ease of learning, and cost-effectiveness often make them the preferred choice for specific tasks or single-component designs.6
The continued reliance on 2D drawings, especially in their traditional or undigitized forms, presents several operational challenges that hinder efficiency and accuracy.
Historically, extracting complex data from engineering drawings has been a predominantly manual process. This approach is inherently time-consuming, labor-intensive, and highly prone to human error.7 Such manual data entry leads to elevated labor costs, slow data processing cycles, and inconsistent data accuracy across an organization.7 The sheer volume and complexity of engineering drawings further exacerbate these issues, making manual extraction a significant bottleneck.9
Furthermore, traditional methods for managing and organizing 2D drawings often result in limited searchability. These methods frequently rely on textual metadata, which proves inadequate for describing the intricate layout, shape, and topological information embedded within complex engineering drawings.10 Physical drawings, in particular, face inherent challenges related to storage, accessibility, and effective version control, making it difficult to locate specific information quickly or ensure that teams are working with the most current version.12
Finally, the generation of process plans from 2D drawings through manual workflows is a laborious and repetitive undertaking. This manual approach is susceptible to errors such as measurement inaccuracies or inconsistent specifications, which can lead to significant production delays and costly reworks downstream.2 The inherent limitations of 2D drawings, including their restricted visualization capabilities and lack of interactivity, make it challenging to communicate complex designs effectively or to simulate product performance under real-world conditions.3 These limitations underscore the pressing need for advanced solutions that can automate and intelligentize the handling of 2D engineering drawing data.
Traditional Computer-Aided Design (CAD) software, such as AutoCAD, offers built-in features for data extraction. AutoCAD's "Data Extraction" (DX) command, for instance, allows users to pull data from one or more drawings and populate it into a table or export it to external file formats like.csv,.xls,.mdb, or.txt.14 This feature can extract drawing information, block attributes, and object properties, simplifying data collection and automatically counting items based on specified criteria.14 It also supports importing and merging data from external files into the drawing.14
However, the utility of these native CAD extraction tools is primarily limited to structured data already embedded or easily identifiable within the CAD file, such as predefined block attributes.14 They do not inherently address the challenges posed by unstructured annotations, scanned raster images, or the semantic interpretation of complex graphical elements, which constitute a significant portion of engineering drawing data, particularly in legacy systems.
The historical complexity and diversity of engineering drawings made automated data entry nearly impossible for simple text-analysis tools.7 However, the advent of AI and machine learning has revolutionized data extraction from these documents. These advanced technologies are now capable of recognizing alphanumeric characters and interpreting complex visual information from dynamic engineering drawings, regardless of where the data is placed.7
Leading solutions in this space, such as Infrrd's AI platform, can instantly detect data from various types of engineering diagrams, including Mechanical, Electrical, and Plumbing (MEP) drawings and Piping and Instrumentation Diagrams (P&ID), with what is described as "better-than-human accuracy".9 This capability automates processes like incoming Request for Quote (RFQ) submissions by reading requirements directly from technical drawings, matching them with product catalogs, and preparing quotes in minutes.9 The extracted data, including complex dimensions and tolerances, is then made available in usable formats like JSON or Excel for seamless integration into downstream systems.9 Infrrd reports achieving 100% accuracy and significant operational efficiency gains for its clients.9
Similarly, Businesswaretech provides custom AI solutions that leverage computer vision and Natural Language Processing (NLP) for automated drawing type detection, extraction of labels, special symbols, Geometric Dimensioning and Tolerancing (GD&T) data, and part measures.17 These solutions are designed for seamless integration with existing CAD software, enhancing their capabilities without disrupting current workflows.17
Academic research further supports the efficacy of AI in this domain. Fine-tuning Vision-Language Models (VLMs) like Florence-2 has demonstrated significant improvements in automated engineering drawing information extraction, particularly for GD&T data.18 Despite its relatively smaller size, Florence-2 has shown substantial gains in precision, recall, and F1-score, alongside a notable reduction in hallucination rates, outperforming larger closed-source models when optimized for domain-specific tasks.18 This demonstrates the potential for AI to learn and interpret information even when its placement varies across drawings.7
Optical Character Recognition (OCR) technology, when paired with AI and machine learning, is instrumental in recognizing alphanumeric characters within images and extracting data from dynamic engineering drawings.7 For instance, Procore utilizes OCR to automatically populate title, number, and discipline fields from PDF drawings, with recommendations for vector format, TrueType fonts, and specific text formatting to enhance accuracy.19
AI-powered solutions are capable of extracting a comprehensive range of data from 2D engineering drawings. This includes high-level metadata such as drawing type and title block information, as well as detailed technical specifications like dimensions, scale, GD&T data, measures, labels, annotations, and special symbols.17 They can also identify and extract material specifications, design elements, and data from complex embedded spreadsheets.17 Furthermore, these systems can be trained to detect and catalog custom objects, shapes, and components specific to a particular industry or product.9
Despite the advancements, challenges persist in achieving perfect accuracy and in handling the full spectrum of complex and legacy engineering drawings. Manual data entry, while being replaced, still faces issues of high labor costs, slow processing, and inconsistent accuracy.7 Traditional OCR struggled with the inherent complexity and diversity of engineering drawings, where data is not always reliably placed in the same location.7
Current automated solutions still encounter difficulties with complex annotations, ensuring full compatibility with a wide array of legacy drawing formats, accurately recognizing highly customized symbols, and meeting stringent quality assurance requirements.12 These limitations often necessitate a degree of manual verification to ensure complete data integrity.12
A critical preliminary step for digitized paper-based drawings is vectorization, which converts raster graphics into vector representations, enabling the identification of drawing entities like lines, dimensions, and symbols.20 However, contemporary vectorization software may not always fully recognize the original shape position and thickness of all geometric entities, which is vital for accurate 3D model generation from 2D inputs.20
The transition from manual or basic CAD-native extraction to advanced AI/ML/OCR is not merely an incremental improvement but a fundamental necessity to unlock the full value of 2D engineering drawings. The significant drawbacks of manual processes—high cost, time consumption, and error rates—are directly addressed by AI's ability to automate complex data extraction. This implies that any new software solution aiming to be competitive and effective in this domain must fundamentally leverage AI for its core data extraction capabilities.
A substantial opportunity lies in the ability of AI-powered extraction to digitize and leverage "dark data" residing in legacy 2D drawings, which are often stored in undigitized formats like paper or PDF.8 The demand for automating the digitization of these critical, often historical, assets is considerable. A solution excelling in processing these diverse, non-standardized 2D archives can establish a strong competitive advantage by unlocking previously inaccessible information for manufacturers and engineers.
Furthermore, the pursuit of "better-than-human accuracy" and significant improvements in F1-score and reduction in hallucination rates are critical performance metrics that will define market leaders in AI-driven extraction.9 In engineering, precision is paramount, as even minor design faults can lead to significant production delays and increased costs.2 Therefore, a new solution must not only extract data but also demonstrate superior accuracy to gain market trust and adoption, particularly in industries with strict tolerance requirements such as aerospace or medical devices.
Effective management and search of 2D engineering drawings are integral components of broader enterprise systems designed to handle product-related information.
Product Lifecycle Management (PLM) software provides a comprehensive system for managing a product's entire lifecycle, from its initial concept and engineering design through manufacturing, service, and eventual disposal.23 PLM systems integrate data, processes, business systems, and personnel, often linking directly with CAD tools to manage product data, including models and drawings, throughout the product's life.23 Major PLM vendors include Siemens (Teamcenter), Dassault Systèmes (ENOVIA, CATIA, SolidWorks, Centric PLM), PTC (Windchill, Arena), and Autodesk (Fusion Lifecycle).24 These systems aim to provide a central source of data, streamlining processes, facilitating dynamic decision-making, connecting the supply chain, and accelerating time-to-market.26
Product Data Management (PDM) is often considered the foundational layer of PLM. PDM systems centralize product-related data and processes, integrating with CAD systems to manage all file types, track revisions, reduce errors, and enhance design reuse and collaboration.26 Autodesk Vault, for instance, is a PDM solution that integrates with AutoCAD, Inventor, and Revit to manage design and engineering data, offering property extraction and advanced search capabilities.16 Similarly, SOLIDWORKS PDM provides a central repository for CAD models and documents, offering robust version control, file management, and powerful search tools.28
Engineering Data Management (EDM) specifically pertains to the management and organization of engineering data throughout a product or project's lifecycle.30 EDM systems are designed to efficiently handle the creation, storage, control, and distribution of technical data, including drawings, specifications, CAD files, and Bills of Materials (BOMs).30 Accruent Meridian EDMS is a platform that centralizes, stores, searches, and accesses engineering documentation and drawings, aiming to increase productivity and reduce errors stemming from incorrect document versions.31 These systems offer critical functionalities such as version control, improved collaboration, and robust security and compliance features.30
Metadata, defined as data that provides information about a document's content, context, and structure, is crucial for effective document management in engineering.32 It describes attributes such as the author, creation date, file size, document type, and status, enabling easy indexing, organization, and retrieval of documents, thereby significantly improving searchability and overall efficiency.32
Metadata can be categorized into descriptive (e.g., title, author, document type), structural (e.g., media size, page count), administrative (e.g., creation date, retention date), and technical (e.g., software used).32 To maximize its utility, effective metadata usage requires clearly defined field requirements, standardized metadata schemas (such as Dublin Core or METS), consistent naming conventions, and comprehensive training for users.32 Beyond search, metadata also facilitates process automation, including document review and approval workflows.32
The ability to find relevant information within vast archives of engineering drawings has evolved considerably, moving beyond simple keyword matching to more sophisticated, content-aware approaches.
Keyword and Metadata Search: Traditional search methods for CAD models often rely on text-based keywords or embedded metadata.10 Autodesk Vault, for instance, offers basic searches using keywords and wildcards, and advanced searches that target specific properties with defined criteria, supporting Boolean logic and the ability to save frequently used searches.16 Siemens Teamcenter's Active Workspace provides advanced search and filtering capabilities, including intelligent charting, filtering by properties, and ranked results, enabling efficient information retrieval even for users without detailed knowledge of the PLM system's internal data structure.34
Content-Based Search: This approach represents a departure from purely textual organization by employing visual classification based on shape geometry and spatial relationships.10 The objective is to leverage designers' visual memory and even sketching as a query mechanism.10 Early examples include systems like S3, designed for industrial CAD parts, and approaches utilizing pseudo 2D Hidden Markov Models for mechanical parts, which demonstrate initial attempts at content-based retrieval by matching contours or identifying specific details.10
Semantic Search: This is a more advanced paradigm that aims to reduce the "semantic gap" between abstract design descriptions found in early design documents and the detailed geometric information contained within CAD models.35 It involves generating semantic representations from text within both CAD models and design documents by employing domain ontologies and shallow Natural Language Processing (NLP).35 This allows the system to understand the underlying meaning and intent, rather than just matching keywords. Semantic tagging of CAD models, based on shape similarity, has been shown to improve the precision of text-based searches by aligning search results more accurately with a user's design intent.36
Shape Search: Complementing semantic approaches, systems like Siemens Teamcenter offer "shape search" functionalities to find geometrically similar parts.34 Research indicates that accurately computing the similarity between models is crucial for such searches, often involving sophisticated face matching schemes that utilize algorithms like Hopfield neural networks or ant colony optimization.35
Effective 2D drawing management and search are undergoing a transformation, moving beyond simple keyword matching to intelligent, content-aware, and semantic capabilities, which are heavily reliant on AI. While traditional search methods based on metadata are useful, they are often insufficient for complex engineering drawings where layout, shape, and topology are fundamental to the content's meaning.10 The emergence of content-based and semantic search signifies a profound shift, requiring AI and machine learning to interpret visual information and bridge the "semantic gap" between abstract design intent and detailed drawing data. This implies that a new software solution must integrate AI not only for data extraction but also deeply into its search functionality to offer a truly "smart" and context-aware search experience that goes beyond basic metadata queries.
While AI extracts data, robust metadata management serves as the essential foundation for organizing, automating workflows, and ensuring compliance for 2D drawings within larger PLM, PDM, and EDM ecosystems. Metadata is critical for easy indexing, efficient organization, and reliable retrieval, as well as for enhancing collaboration and ensuring regulatory compliance.32 This underscores that even with advanced AI extraction, the extracted data must be structured and managed using a well-defined metadata schema to be truly usable and searchable within an enterprise context. A new solution should therefore not just extract data but also provide tools for defining, applying, and managing this metadata effectively, potentially through seamless integration with existing PLM/PDM systems.
The market is dominated by major PLM and PDM vendors that offer multi-CAD support and established integrations. This indicates that enterprises frequently utilize multiple CAD tools and have significant investments in their existing software ecosystems.29 A new solution, particularly one focused on 2D drawings, will encounter a variety of formats, including native CAD files (DWG, DXF), PDFs, and scanned images, as well as potentially proprietary CAD formats.6 The ability to seamlessly ingest, process, and integrate data from these diverse sources, including legacy drawings, without disrupting existing workflows, will be crucial for widespread market adoption.17 This necessitates robust import/export capabilities and potentially open APIs for integration with major CAD, PDM, and PLM systems.
Table 1: Comparison of Key PDM/PLM/EDM Systems for 2D Drawing Management & Search Capabilities
CAD automation leverages scripts, templates, and AI-driven algorithms to streamline repetitive tasks, such as dimensioning, patterning, and assembly placement.13 This automation significantly reduces human handling, thereby minimizing errors and enhancing overall efficiency.13 For example, in automotive production, CAD automation can reduce design time for complex chassis components from weeks to hours by automatically updating measurements, realigning tolerances, and adding standard features for batches of components.13
The benefits of CAD automation are multifaceted, including enhanced efficiency and speed, leading to drastic reductions in design time. It also contributes to lower errors and improved accuracy by defining design constraints and validating inputs against industry standards, which is critical in industries like aerospace where precise tolerances are paramount.13 Furthermore, automation results in manufacturing cost savings through reduced material waste and fewer prototype revisions, and it increases customization and scalability by enabling the creation of parametric models that adapt to user-defined specifications.13 In construction, automated CAD can accelerate design by automatically populating portions of plans based on preset parameters or templates, and AI can read completed plans to extract details for estimates and identify inconsistencies.42
Specialized software solutions are emerging to optimize assembly processes, often leveraging engineering data to generate and refine process steps.
ipolog focuses on optimizing manual activities on assembly lines or at individual workstations by visualizing processes and material supply directly within the factory layout.43 It employs worker path simulation to highlight non-value-adding steps, providing clarity for planners and management.43 The software facilitates the optimized allocation of work tasks, adjustment of process sequences, and integrated optimization by linking materials and processes.43 Its workflow typically involves importing layouts, preparing 3D resources, summarizing data (often from Excel spreadsheets), and performing cycle simulations for the entire assembly line or individual workstations.43 ipolog also functions as a calculation and reporting tool for Key Performance Indicators (KPIs), offering visual analysis options in a 3D model for immediate feedback on inefficiencies.43
Siemens NX supports assembly line planning and manufacturing process generation through a guided planning and detailing approach for complex assembly tasks and production lines.44 It enables the distribution of parts to stations, defines flow using a PERT viewer, and visually displays the product's buildup within the assembly line.44 NX assists in developing resource plans by leveraging Teamcenter classification for standard resources and allows for detailing stations with specific equipment, parts, sub-assemblies, and the required manufacturing processes.44 Additionally, NX CAD/CAM provides comprehensive, integrated NC programming capabilities.45
AI is increasingly being applied to interpret 2D drawings and generate actionable manufacturing insights and work instructions.
3YOURMIND's AI-powered Technical Drawing Analysis extracts and interprets data from 2D technical drawings using Optical Character Recognition (OCR) and Large Language Models (LLMs).46 This solution can analyze drawings up to 200 times faster than manual methods, evaluating spare part manufacturability (e.g., for CNC machining or 3D printing) and assisting engineers in identifying parts suitable for digitization.46
DraftAid automates the creation of 2D fabrication drawings directly from 3D models, significantly reducing drafting time by up to 90% and ensuring precision.47 It supports batch drawing automation and delivers outputs in native formats (IDW, PDF, DWG, DXF).47 The software applies customizable templates and dimensioning preferences, integrating seamlessly with existing CAD tools.47
Infrrd's AI extracts data from engineering diagrams to optimize the entire production flow, from Research & Development (R&D) to Quality Assurance (QA). This ensures specification accuracy and consistency, thereby reducing time-to-market for components and minimizing human errors and reworks across the board.9
SelectAM's 'Leap3D' offers an automated conversion service that uses AI to analyze 2D technical drawings (specifically PDFs) and generate rough 3D models.48 These models are then useful for assessing the suitability of parts for 3D printing, streamlining the process and reducing manual effort, especially when dealing with low-quality or legacy 2D data.48
While AI advancements are powerful, automating complex process planning directly from 2D drawings faces inherent limitations due to the nature of 2D representation compared to 3D models or Building Information Modeling (BIM).
Limited Information in 2D: 2D drawings provide only a flat, two-dimensional view of objects, lacking the perspective or depth necessary to convey comprehensive details such as material volume, weight, or properties that are readily available in 3D models.3 They struggle to capture the full complexity of modern building systems or intricate mechanical assemblies.49
Inadequate for Simulation: A significant limitation is the inability to use 2D drawings to simulate the performance of an object under real-world conditions, such as fluid flow, strain, or stress.6 This restricts their utility for advanced process validation and optimization.
Coordination and Interpretation Issues: 2D drawings are prone to misinterpretation, which can lead to costly mistakes and delays, particularly when communicating complex designs to non-technical stakeholders.6 Inconsistent 2D CAD drawings can create confusion and increase the risk of costly revisions.1
Change Management: Detecting and tracking changes across different versions of 2D drawings is often a manual and error-prone process, making it difficult to ensure that all teams are working with the most current design.1
Complexity of Modern Projects: Contemporary construction and manufacturing projects involve increasingly intricate designs and systems that 2D drawings struggle to represent adequately, highlighting a critical need for better coordination and a more holistic data representation.49
Conversion Challenges: Even with automation, challenges arise in converting 2D CAD drawings for process planning due to existing model errors, such as incomplete or overlapping walls, inaccurately drawn boundaries, or missing data, which can hinder automated room detection or feature identification.50
A critical observation is that while a new solution may focus on 2D drawings, the ultimate objective of advanced automated process planning often necessitates leveraging 3D models or digital twins. The most sophisticated assembly planning software, such as ipolog and Siemens NX, heavily relies on 3D visualization and models for comprehensive simulation and optimization.43 The inherent limitations of 2D drawings for complex projects, detailed simulation, and comprehensive information are well-documented.3 This implies that for a solution to truly enable advanced process step generation, it will be significantly enhanced if it can either convert 2D data to 3D models, seamlessly integrate with 3D modeling environments, or if its process generation capability is specifically tailored to intelligently overcome the limitations of 2D input. This represents a crucial strategic consideration for the product roadmap.
Furthermore, AI is rapidly evolving beyond mere data extraction to direct interpretation and generation of manufacturing insights and work instructions from 2D drawings. Solutions like 3YOURMIND's AI-powered analysis can "unlock the full potential" of 2D drawings by "extracting and interpreting data" to "evaluate spare part manufacturability".46 This demonstrates that AI is not just pulling raw data but is beginning to understand the semantics of the drawing to inform manufacturing decisions and even generate new manufacturing-ready outputs. A new product needs to emphasize its "intelligence" in this process generation aspect, potentially using extracted GD&T and material data to suggest optimal manufacturing routes or even generate preliminary work instructions.
Finally, the accuracy of extracted data from 2D drawings directly impacts the efficiency and cost-effectiveness of downstream manufacturing processes. Manufacturing operations demand high accuracy, as even minor design faults can lead to significant production delays and increased costs, with errors magnifying if initial designs are inexact.2 The benefits of CAD automation are directly tied to "lower errors and better accuracy".13 This highlights that the core strength of a new solution in "extracting information from 2D engineering drawings" with high accuracy (as claimed by AI solutions like Infrrd 9) is a direct value driver for its "generate process steps" functionality. The precision of the extracted data will directly translate to the reliability and quality of the generated process plans, ultimately leading to substantial cost savings and reduced rework for manufacturers.
The global engineering software market is experiencing robust growth, driven by pervasive digital transformation initiatives across industries. The market was valued at approximately $55.63 billion in 2024 and is projected to grow to $64.97 billion in 2025, demonstrating a Compound Annual Growth Rate (CAGR) of 16.8%. This rapid expansion is anticipated to continue, with forecasts indicating a market size of $119.52 billion by 2029, maintaining a CAGR of 16.5%.51 Another assessment of the CAD and PLM software market specifically valued it at $16.67 billion in 2024, with projections to reach $33.05 billion by 2032 at an 8.32% CAGR.53 Focusing solely on 3D CAD software, the market size was $12.55 billion in 2024, with a projected growth to $24.23 billion by 2034 at a CAGR of 6.8%.54
This growth is primarily fueled by several key drivers: the increasing complexity of product designs, the globalization of the engineering workforce, stringent regulatory compliance requirements, and the continuous demand for cost and time savings.51 Major trends shaping this market include the widespread adoption of cloud-based solutions, deep integration of Industry 4.0 and Internet of Things (IoT) technologies, the rise of additive manufacturing, the increasing prevalence of open-source software, and a strong emphasis on improved user experience (UX) design.51 The expansion of digital twin technology across various industries is also a significant catalyst for market growth, with a reported 40% increase in its adoption within manufacturing.51 Furthermore, the escalating trend of automation in manufacturing is expected to further propel the engineering software market forward.52

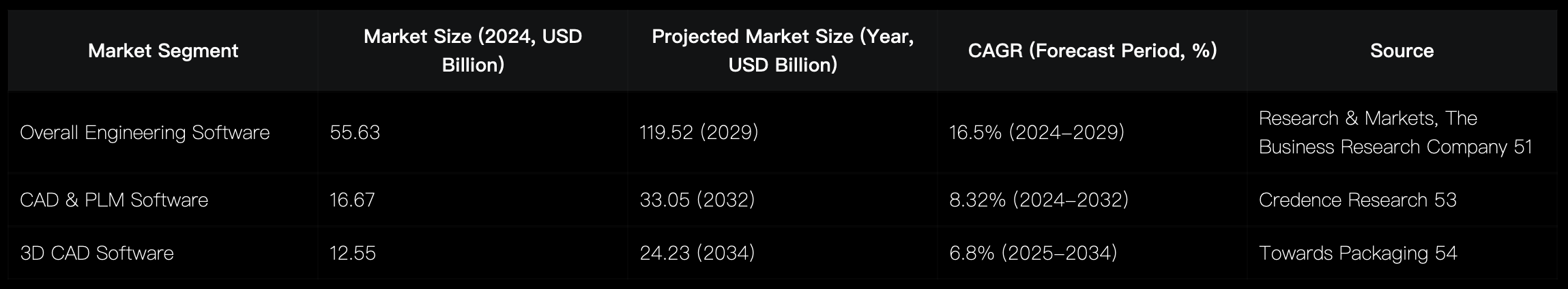

Table 2: Engineering Software Market Size & Growth Forecast (2024-2030)
The strong market growth driven by cloud adoption and AI integration points to a clear preference for modern, scalable, and intelligent software solutions. This suggests that simply offering a desktop-based, non-AI solution will likely struggle to capture significant market share. A new software product should leverage cloud architecture for enhanced accessibility and scalability, and its AI capabilities should be a central selling point, aligning with these dominant market trends.
The expansion of digital twins is identified as a key growth driver, indicating that solutions capable of contributing to or integrating with digital twin creation will possess long-term strategic value. The critical role of 2D-to-3D conversion for digital twin creation from legacy drawings is explicitly highlighted.22 This implies that while a new product may initially focus on 2D, its ability to feed into or facilitate digital twin initiatives (perhaps through its extraction and process generation features) could be a powerful differentiator and a significant future growth avenue. The market is clearly moving towards comprehensive digital representations, and a product that can serve as a key enabler for this transition will be well-positioned.
The global factory automation market was estimated at USD 36.01 billion in 2024 and is projected to reach USD 39.69 billion in 2025, with an anticipated CAGR of 11.1% from 2025 to 2030.58 The broader industrial automation market was valued at approximately USD 224 billion in 2023, with an expected CAGR of around 9% during the forecast period of 2024-2032.59
The primary drivers for this market growth include the escalating demand for operational efficiency, the expansion of manufacturing and industrial sectors, and the increasing implementation of autonomous plants and remote operations, all aimed at reducing costs and boosting productivity.58 Within this market, the software segment is projected to exhibit the fastest CAGR, exceeding 14% from 2025 to 2030.58 This acceleration is driven by the growing need for real-time monitoring, predictive maintenance, and production optimization, compelling manufacturers to adopt sophisticated automation software, including Manufacturing Execution Systems (MES), Human-Machine Interfaces (HMI), simulation tools, and AI-driven analytics platforms.58 As factories become more interconnected, the demand for cloud-based solutions, digital twins, and cybersecure industrial software is surging.58 The discrete manufacturing segment held the largest share of the manufacturing automation market in 2023.61
The integration of AI and machine learning is a significant driver of manufacturing automation.60 Companies are increasingly leveraging collaborative robots (cobots) due to their ease of programming and adaptability, allowing for quick responses to changing production demands.58 The adoption of AI-driven analytics platforms is pushing manufacturers towards more sophisticated automation software, and the integration of AI services into manufacturing processes is demonstrably increasing productivity.58
The rapid growth of the software segment within manufacturing automation, particularly fueled by AI, signifies a strategic shift from purely mechanical automation to intelligent, data-driven operations. The software segment is expected to be the fastest-growing component of the factory automation market.58 This indicates that a new software solution for process generation is positioned within the most dynamic and high-growth area of the manufacturing automation market. The emphasis for such a product should be on how its AI capabilities contribute to real-time insights, predictive functionalities, and overall production optimization, aligning with the principles of Industry 4.0.
Furthermore, the data indicates that automation is now a global mandate rather than an optional investment, with over 70% of global manufacturers having already implemented some level of automation.63 This suggests that companies not automating are falling behind competitively. This widespread adoption, driven by the imperative to increase productivity, reduce costs, and address labor market challenges 64, creates a fertile ground for solutions that automate tasks previously performed manually. A new product can position itself as an essential tool for manufacturers seeking to either catch up with competitors or further enhance their existing automation initiatives.
The global document management system (DMS) market is experiencing substantial growth, primarily driven by the increasing need for organizations to securely manage and store vast amounts of digital information. The market was estimated at USD 7.68 billion in 2024 and is anticipated to grow at a Compound Annual Growth Rate (CAGR) of 15.9% from 2025 to 2030, reaching a projected USD 18.17 billion by the end of the forecast period.65
Within the DMS market, the software segment dominated with over 67% revenue share in 2024, propelled by the demand for cloud-based, AI-driven, and compliance-ready solutions.65 Similarly, the cloud deployment segment also held a significant share (over 67%), driven by the integration of advanced technologies such as AI, machine learning (ML), and robotic process automation (RPA) into cloud DMS platforms.65 Large enterprises accounted for the majority of the market share, driven by the sheer volume of enterprise-grade documents and the imperative for scalable, secure, and intelligent document workflows.65
The growth of the DMS market, particularly in its software and cloud segments, underscores a broader digital transformation trend where efficient and secure document handling is paramount. The market is actively seeking advanced, intelligent solutions for managing digital information.65 This positions a new product that manages and makes 2D engineering drawings searchable squarely within a thriving market segment. The product should emphasize its secure, cloud-compatible, and AI-enhanced document management capabilities to align with these prevailing market demands.
While the general DMS market is substantial, engineering drawings present unique challenges due to their complexity, visual data content, and specific metadata requirements, which generic DMS solutions may not fully address. Engineering Data Management (EDM) is a specialized form of DMS specifically designed for engineering data, highlighting its importance for managing drawings, CAD files, Bills of Materials (BOMs), and version control.30 This distinction from the broader DMS market suggests that while the overall DMS market is growing, a new product, by focusing specifically on engineering drawings, can carve out a valuable niche. It can achieve this by offering specialized features such as GD&T extraction, semantic search tailored for engineering content, and seamless integration with engineering-specific workflows, capabilities that generic DMS solutions often lack.
The adoption of digital engineering software is influenced by a complex interplay of technological, organizational, and environmental factors.
Technological Context: The perceived benefits of a technology are a primary determinant of its adoption.66 Conversely, the complexity of a technology can hinder its uptake, with simpler, "easy-to-use" systems being more likely to be adopted.66 The observability or visibility of a technology's success within a sector can positively influence its adoption, encouraging others to follow.66 The ability to trial a technology as part of its design and delivery can also be a key factor in fostering adoption.66
Organizational Context: Larger firms tend to exhibit higher adoption rates of advanced technologies, largely due to their stronger human and technological resources, broader market access, and the greater commercial viability afforded by a larger scale of output.66 Overcoming silo mentalities and effectively visualizing interdependencies throughout the product lifecycle are crucial for successful digital engineering implementation.67
Environmental Context: External factors such as regulation, industry standards, and government support significantly influence adoption rates.66 Market factors, including competitor pressures and the extent to which customer demand supports adoption or supplier relationships facilitate it, also play a role.66 Adequate digital infrastructure, such as high-speed broadband and connectivity, is an essential enabler for the adoption of advanced technologies like AI and Augmented Reality/Virtual Reality (AR/VR).66
Despite these drivers, several barriers impede adoption:
Financial Cost: The high costs associated with adoption, anticipated low return on investment (ROI), or inadequate access to external finance are significant barriers, with 33% of firms considering it a major obstacle.66
Workforce Skills Gap: A notable skills gap exists, with 25% of firms identifying it as a significant barrier.66 Many engineers and designers are primarily trained in 3D modeling, and this proficiency does not always translate to expertise in 2D drafting, leading to difficulties in producing clear and accurate 2D drawings that meet industry standards.1
Inadequate Technology Infrastructure: 21% of firms consider inadequate technology infrastructure a significant barrier.66
Uncertainty in Potential Benefits: 15% of firms express uncertainty regarding the potential benefits of adopting new technologies, which acts as a barrier.66
Complexity: The perceived complexity of the technology can directly hinder its adoption.66
Given the significant barriers of cost and perceived complexity, a new software solution must prioritize user-friendliness and clearly articulate its return on investment (ROI). The data indicates that financial cost is a major barrier, and uncertainty in potential benefits also hinders adoption.66 Furthermore, simpler, easy-to-use systems are more likely to be adopted.66 This means that despite incorporating advanced AI, a new product needs to present a simple, intuitive user experience and provide clear case studies or metrics demonstrating quantifiable benefits such as reduced labor costs, faster processes, and fewer errors. Marketing efforts should focus on these tangible benefits and the ease of integration into existing workflows.
The existing skills gap in 2D drafting presents both a challenge and a strategic opportunity for solutions that automate complex tasks. The fact that many engineers are trained primarily in 3D modeling, rather than 2D drafting, means they may struggle to produce accurate 2D drawings.1 This implies that a new software product, by automating complex extraction and process generation from 2D drawings, can effectively mitigate this skills gap. The product can be positioned as a tool that empowers the existing workforce to handle 2D data more efficiently, even without deep 2D drafting expertise. Offering comprehensive training and readily available user support will also be critical for facilitating widespread adoption.
The global market for engineering software and automation exhibits distinct regional characteristics and adoption drivers, necessitating tailored strategies for market penetration.
North America stands as the largest region in the overall engineering software market in 2024 51 and commands a significant share (over 27%) in the factory automation market.58 This dominance is primarily driven by a strong regional focus on smart manufacturing, extensive AI integration, and ongoing digital transformation initiatives.58 The region is witnessing rapid adoption of Industrial Internet of Things (IIoT) platforms, edge computing, and real-time analytics, all aimed at boosting operational efficiency and product quality.58 Sectors such as automotive, electronics, pharmaceuticals, and aerospace are leading these automation investments.58
The U.S. market, in particular, holds a commanding share (over 81%) in factory automation, propelled by the nation's imperative to maintain global competitiveness, modernize aging industrial infrastructure, and address persistent labor cost and skill gaps.58 Similarly, the Document Management System (DMS) market in North America held the largest revenue share (40%) in 2024, driven by the broad digital transformation across various industries.65
North America's market maturity in digital transformation and its strong focus on smart manufacturing indicate a high demand for sophisticated, integrated AI-driven solutions that offer tangible return on investment. The region's substantial investment capacity and its drive for advanced solutions suggest that a new product needs to be positioned as a high-value, advanced tool that integrates seamlessly into existing complex digital ecosystems, rather than a standalone offering. Emphasizing its AI capabilities and potential for significant operational efficiency improvements will resonate strongly with North American enterprises.
Furthermore, the U.S. market's drive for automation is explicitly linked to addressing labor cost and skill gaps.58 This provides a direct and compelling value proposition for a software solution that automates data extraction and process generation from 2D drawings. By reducing reliance on scarce or expensive skilled labor, such a product can help companies improve productivity and achieve significant cost efficiencies. This should be a central message in any market outreach within North America.
Asia-Pacific is projected to be the fastest-growing region in both the engineering software market 51 and the factory automation market, with an anticipated CAGR exceeding 13% from 2025 to 2030.58 This rapid expansion is fueled by ongoing industrialization, proactive government initiatives (such as China's "Made in China 2025"), and a surging demand for smart manufacturing solutions.58 Countries like China, Japan, and India are making substantial investments in automation technologies to enhance productivity and reduce labor costs.58 The region also benefits from a strong presence of major automation solution providers and a rapidly expanding manufacturing base across sectors like automotive, electronics, and textiles.58 Asia Pacific currently accounts for the largest revenue share in the overall engineering services market (nearly 37% in 2024), driven by urbanization, industrialization, and significant infrastructure investments.68
The status of Asia-Pacific as the fastest-growing region, coupled with its rapid industrialization and strong government backing for advanced manufacturing, indicates a market ripe for new technology adoption. Unlike more mature markets, there may be more greenfield opportunities or a greater willingness to embrace innovative solutions that align with national strategic goals for manufacturing.58 A new product can effectively position itself by emphasizing its contribution to "smart manufacturing" and "productivity enhancement" to align with these regional priorities.
While North America also focuses on labor, Asia-Pacific's automation drive is heavily influenced by the imperative to reduce labor costs and enhance efficiency within its rapidly expanding manufacturing base.58 This makes cost reduction and labor efficiency particularly strong drivers for a software solution that automates tasks previously performed manually. Positioning the product as a tool for achieving significant operational cost savings and efficiency gains will be especially effective in this region.
The factory automation market in Europe is expected to grow at a Compound Annual Growth Rate (CAGR) of over 6% from 2025 to 2030.58 This growth is supported by robust regulatory frameworks, ambitious sustainability goals, and substantial government funding for Industry 4.0 initiatives.58 The region's strong emphasis on achieving carbon neutrality and promoting energy-efficient production is accelerating the adoption of smart automation, AI, and digital twins.58 Advanced economies within Europe are actively modernizing their legacy infrastructure with cloud-based platforms, robotics, and cyber-physical systems to enhance productivity and competitiveness.58
Europe's distinctive focus on sustainability and stringent regulatory frameworks offers a unique market entry point for solutions that can demonstrably contribute to these goals. The emphasis on "carbon neutrality and energy-efficient production" 58 implies that if a new product can show how its automated extraction and process generation capabilities lead to reduced waste, optimized material usage, or improved traceability for compliance (e.g., by ensuring accurate Bills of Materials or process documentation), it could find a strong market fit. This requires a specific messaging strategy tailored to European priorities.
Furthermore, Europe's drive to modernize existing infrastructure with advanced technologies presents significant opportunities for solutions that can integrate with and enhance older systems.58 Many European manufacturers likely possess substantial archives of 2D engineering drawings and legacy systems that need to be integrated into modern digital workflows. A product specializing in 2D drawing extraction and management can serve as a crucial component in this modernization effort, offering a viable pathway to digital transformation for companies not yet fully transitioned to 3D or BIM.

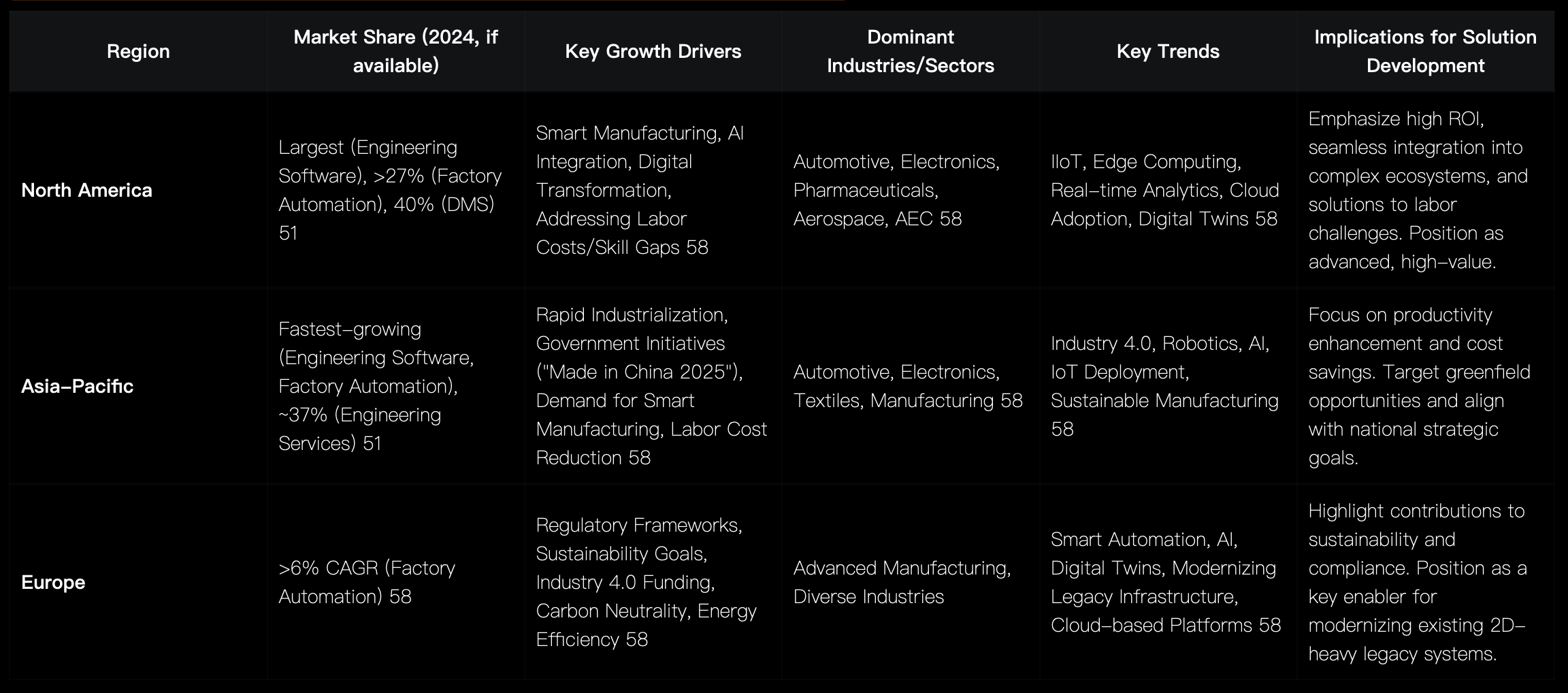

Table 3: Regional Market Adoption Drivers and Trends for Engineering Software
The market for engineering software, particularly solutions touching on 2D drawing extraction, management, search, and process generation, is characterized by a mix of established industry giants offering comprehensive suites and emerging niche players specializing in AI-driven innovations.
CAD Software Vendors:
PLM Software Vendors:
EDM Software Vendors:
AI-Driven Data Extraction and Process Generation:
The market also features emerging niche players that often leverage cloud-based deployments and specialized AI applications. Examples include OpenBOM and Propel, which offer cloud-based BOM and PLM tools, sometimes built on platforms like Salesforce.24 Duro and Backbone PLM focus on cloud-native PLM tailored for agile hardware teams and specific industries like apparel and consumer goods, respectively.24 These innovations often center on enhanced collaboration, flexibility, and industry-specific solutions, pushing the boundaries of what is possible with AI-driven automation and cloud-native architectures.

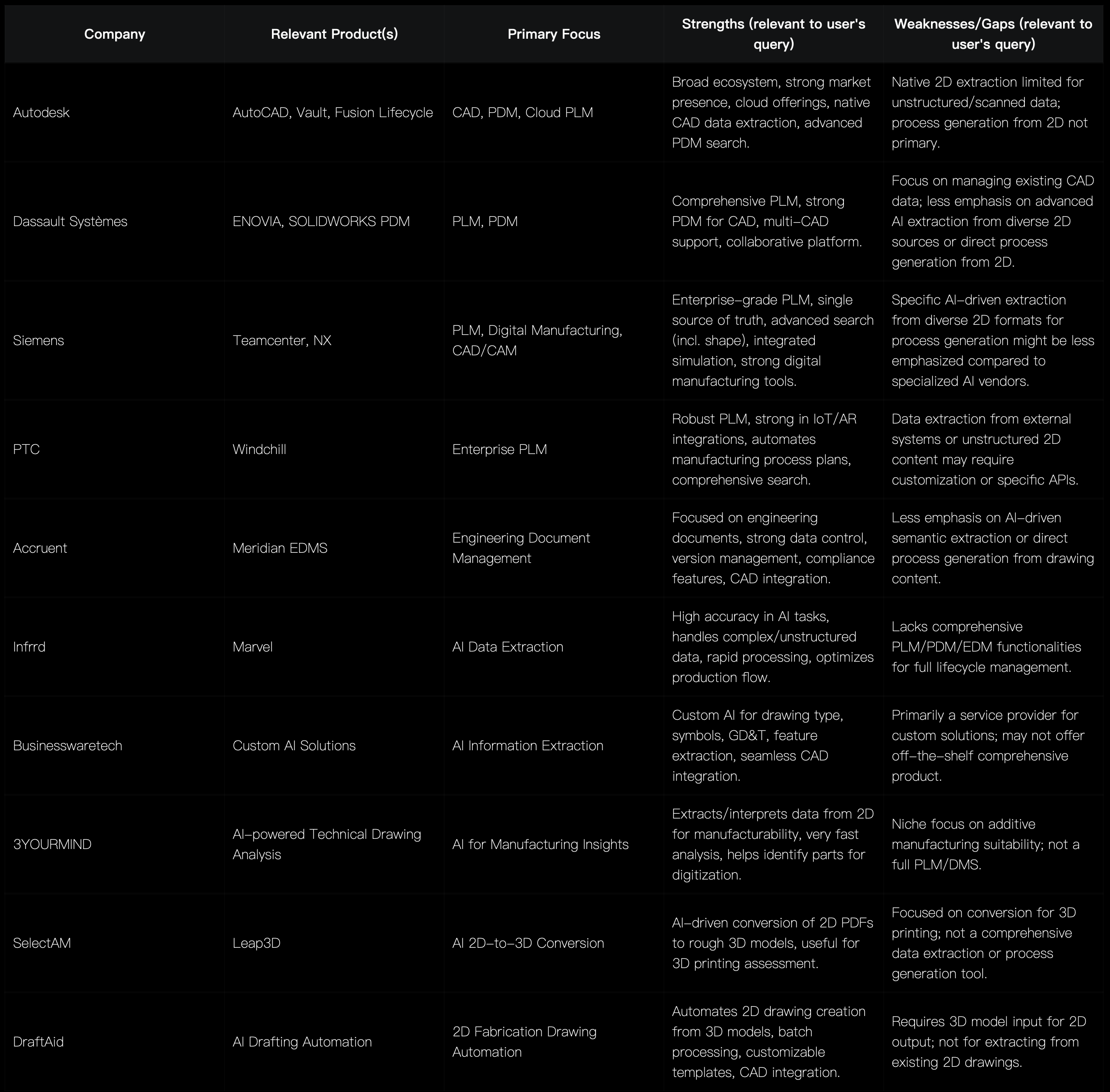

Table 4: Key Competitors and Their Relevant Product Offerings
The competitive landscape presents a dichotomy between comprehensive PLM/PDM suites offered by major players and highly specialized AI-driven tools. This suggests that a new software solution must strategically decide its positioning. It can either aim to be a "best-of-breed" solution that excels in its specific functionalities—information extraction, intelligent search, and process generation from 2D drawings—and then integrate seamlessly with existing enterprise systems, or attempt to build out a more comprehensive suite. The former approach appears more viable initially, allowing for deep specialization and rapid innovation in its core areas.
Given the prevalence of established PLM/PDM systems within enterprises, the ability to seamlessly integrate with these platforms will be crucial for the adoption of a new solution. Many organizations have significant investments in their current software ecosystems.17 Therefore, the success of a new product will heavily depend on its open APIs and its capacity to connect with major CAD, PDM, and PLM systems for tasks such as importing drawings, exporting extracted data, or triggering process generation workflows. This interoperability will allow the product to function as a valuable "intelligence layer" that enhances existing infrastructure rather than demanding a complete overhaul.
A significant opportunity lies in the ability of a new solution to extract information and generate processes from existing 2D drawings. Many equipment owners still rely on technical drawings as the sole records of how parts or assemblies were originally manufactured, and a vast amount of critical data remains "trapped" in undigitized 2D engineering drawings.8 This points to a substantial market need for solutions that can "unlock" this valuable, often dormant, data. A product that focuses on 2D extraction and process generation can position itself as a critical tool for digitalizing and leveraging these historical assets, providing a unique value proposition compared to systems primarily designed for new 3D model creation.
The comprehensive market analysis reveals significant opportunities for a software solution focused on extracting information from 2D engineering drawings, managing them for searchability, and generating process steps. Leveraging the identified market dynamics and competitive landscape, the following strategic recommendations are presented:
Continuous investment in research and development for AI/ML models is paramount to improving accuracy, particularly for challenging data points like GD&T and custom symbols.18 Exploring few-shot learning methods can reduce the dependency on extensive training data, accelerating model development and deployment.8 Developing intelligent object detection and auto-reading capabilities for a wide variety of engineering diagrams will further enhance the solution's versatility and accuracy.9 The goal should be to achieve and consistently demonstrate "better-than-human accuracy" in data extraction, as this is a critical performance metric that builds market trust.9
Given the prevalence of established CAD, PDM, and PLM systems, developing robust APIs and connectors for major platforms (e.g., AutoCAD, SOLIDWORKS, Teamcenter, Fusion Lifecycle, Windchill) is essential.17 Supporting common exchange formats (DWG, DXF, PDF, JSON, Excel) for data import and export will facilitate interoperability.9 The solution should be positioned as a complementary "intelligence layer" that enhances existing systems rather than demanding their replacement. This approach minimizes disruption to current workflows and leverages existing enterprise investments, making adoption more palatable for organizations.
The solution can provide maximum value in several key industries and use cases:
A subscription-based model (monthly or annual) is common for software solutions and aligns well with cloud-based offerings, providing predictable costs for users and recurring revenue.65 Implementing tiered pricing based on usage (e.g., number of drawings processed, data points extracted, or number of users) can cater to different enterprise sizes and usage patterns.65 For custom integrations or complex legacy data projects, a Time & Materials (T&M) model or a fixed-price model for specific project scopes might be suitable.75 Offering freemium or trial options can lower initial adoption barriers and allow potential users to experience the value firsthand.9
A strategic approach to pricing should tie directly to the significant cost savings and productivity gains the software delivers, rather than solely focusing on feature sets. The numerous benefits highlighted in the market data, such as reduced quote generation time, increased operational efficiency, and substantial annual cost savings 9, provide a strong basis for value-based pricing. This approach helps overcome the "financial cost" barrier to adoption by clearly demonstrating the return on investment.66
The market for enhancing 2D engineering drawings is robust and expanding, primarily driven by the imperative for digital transformation, the pervasive influence of AI, and the critical need to unlock valuable data from vast archives of legacy drawings. The analysis confirms that a software solution capable of extracting information, enabling intelligent search, and generating process steps from 2D engineering drawings is exceptionally well-positioned to capitalize on these trends.
The most compelling long-term opportunity for such a solution lies in positioning itself as the essential bridge for companies to leverage their extensive 2D drawing archives for advanced digital initiatives, particularly the creation of digital twins. Engineering drawings are recognized as the "backbone" for digital twin development, and the conversion of 2D drawings into 3D models is foundational for this process.22 This implies that the product can effectively "own" the critical initial phase of digital transformation for enterprises with significant 2D legacy data. The strategic imperative is to not merely extract and manage 2D data but to explicitly offer a pathway or seamless integration for this 2D information to feed into 3D models and digital twin applications, potentially through strategic partnerships or integrated conversion features.
To achieve sustained success, the product must not only excel in its core functionalities—accurate extraction, intelligent search, and reliable process generation—but also proactively address integration challenges within existing enterprise ecosystems. It must consistently demonstrate a clear return on investment by quantifying cost savings and efficiency gains for its users. Furthermore, its product roadmap and market messaging must align with the evolving demands for intelligent, connected, and data-driven engineering workflows. The future of manufacturing and construction will increasingly rely on the intelligent processing of 2D drawings as a critical component of the broader digital thread.
